checklist

tests/python/release_checklist/check_time_range_individual_overrides.py

@@ -0,0 +1,113 @@
+from __future__ import annotations
+
+import os
+from argparse import Namespace
+from math import tau
+from uuid import uuid4
+
+import numpy as np
+import rerun as rr
+import rerun.blueprint as rrb
+from rerun.utilities import bounce_lerp, build_color_spiral
+
+README = """\
+# Individual time-range overrides
+
+You should see the familiar Helix example, but the beads (and the beads only), should have a cursor-relative
+time-range applied to them.
+
+If you select the beads, you should see a `Visible Time Range` set to `[-0.3, +0.3]`.
+"""
+
+EXPECTED = """\

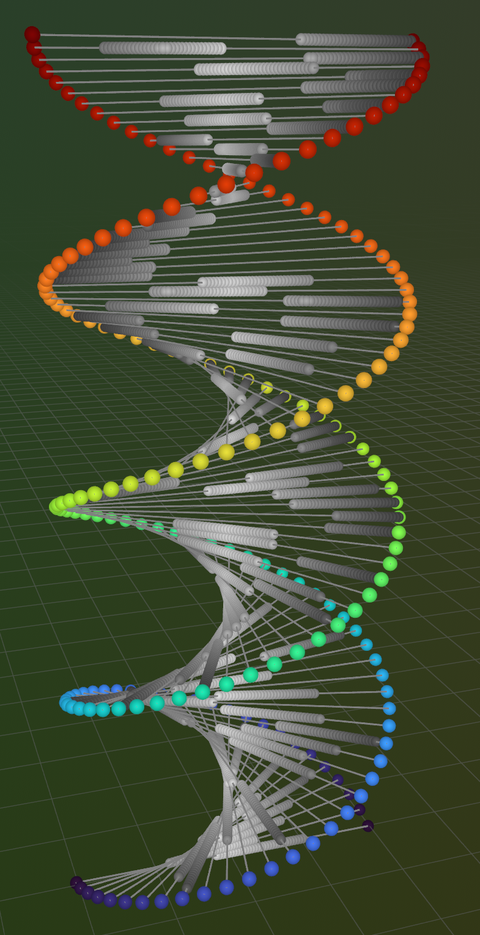

+It should look something like this:
+* ![expected](https://static.rerun.io/individual_overrides/7a9813500b81c2eeaf2a86f3603dab88bfd6b8c1/480w.png)
+"""
+
+
+def blueprint() -> rrb.BlueprintLike:
+    return rrb.Blueprint(
+        rrb.Horizontal(
+            contents=[
+                rrb.Spatial3DView(
+                    origin="/",
+                    overrides={
+                        "helix/structure/scaffolding/beads": [
+                            rrb.VisibleTimeRange(
+                                "stable_time",
+                                start=rrb.TimeRangeBoundary.cursor_relative(seconds=-0.3),
+                                end=rrb.TimeRangeBoundary.cursor_relative(seconds=0.3),
+                            ),
+                        ]
+                    },
+                ),
+                rrb.Vertical(
+                    rrb.TextDocumentView(origin="readme"),
+                    rrb.TextDocumentView(origin="expected"),
+                    row_shares=[1, 3],
+                ),
+            ]
+        ),
+    )
+
+
+def log_readme() -> None:
+    rr.log("readme", rr.TextDocument(README, media_type=rr.MediaType.MARKDOWN), static=True)
+
+
+def log_helix() -> None:
+    rr.set_time_seconds("stable_time", 0)
+
+    rr.log(
+        "expected",
+        rr.TextDocument(EXPECTED, media_type=rr.MediaType.MARKDOWN),
+    )
+
+    NUM_POINTS = 100
+
+    # points and colors are both np.array((NUM_POINTS, 3))
+    points1, colors1 = build_color_spiral(NUM_POINTS)
+    points2, colors2 = build_color_spiral(NUM_POINTS, angular_offset=tau * 0.5)
+    rr.log("helix/structure/left", rr.Points3D(points1, colors=colors1, radii=0.08), static=True)
+    rr.log("helix/structure/right", rr.Points3D(points2, colors=colors2, radii=0.08), static=True)
+
+    rr.log(
+        "helix/structure/scaffolding",
+        rr.LineStrips3D(np.stack((points1, points2), axis=1), colors=[128, 128, 128]),
+        static=True,
+    )
+
+    time_offsets = np.random.rand(NUM_POINTS)
+    for i in range(400):
+        time = i * 0.01
+        rr.set_time_seconds("stable_time", time)
+
+        times = np.repeat(time, NUM_POINTS) + time_offsets
+        beads = [bounce_lerp(points1[n], points2[n], times[n]) for n in range(NUM_POINTS)]
+        colors = [[int(bounce_lerp(80, 230, times[n] * 2))] for n in range(NUM_POINTS)]
+        rr.log(
+            "helix/structure/scaffolding/beads", rr.Points3D(beads, radii=0.06, colors=np.repeat(colors, 3, axis=-1))
+        )
+
+        rr.log(
+            "helix/structure",
+            rr.Transform3D(rotation=rr.RotationAxisAngle(axis=[0, 0, 1], radians=time / 4.0 * tau)),
+        )
+
+
+def run(args: Namespace) -> None:
+    rr.script_setup(args, f"{os.path.basename(__file__)}", recording_id=uuid4())
+
+    rr.send_blueprint(blueprint(), make_default=True, make_active=True)
+
+    log_readme()
+    log_helix()
+
+
+if __name__ == "__main__":
+    import argparse
+
+    parser = argparse.ArgumentParser(description="Interactive release checklist")
+    rr.script_add_args(parser)
+    args = parser.parse_args()
+    run(args)
