Learning from Demonstration (LfD)

Prerequisites:

Follow instructions for advanced installation of stretch_ai with Python 3.10

Install Hello-Robot's fork of HuggingFace LeRobot

# Install in same conda environment as stretch_ai
conda activate stretch_ai

git clone https://github.com/hello-robot/lerobot
cd lerobot

# Support for Stretch is currently implemented on this branch
git switch stretch-act

# Editable install makes editing configs useful, though configs can also be specified via cli
pip install -e .

Our LfD code is a fork of LeRobot. The original LeRobot repo can be found here.

Overview of LfD process

Collect demonstration dataset with dex teleop (50 episodes)
Format dataset and push to HuggingFace Hub
Train policy (1000 epochs)
Load and evaluate policy
Integrate as skill in a long horizon task

Format data and push to huggingface repo

Authenticate with huggingface-cli

Optional: login to weights and biases (wandb)

Use the weights and biases CLI to login:

wandb login

You will then be able to track progress on training runs with wandb.

Process and push demonstration folder to HuggingFace repo

# --raw-dir:  where the episodes for this task are stored
# --repo-id: Name of huggingface dataset, consists of your ID and the dataset name separated by a `/`
# --local-dir: where a local copy of the final huggingface dataset will be stored, last two layers of local_dir should be in same format as the repo-id
# --video: If true, dataset will only contain videos and no images
# --fps: FPS of demonstrations

python ./lerobot/scripts/push_dataset_to_hub.py \
--raw-dir ./path-to-raw-dir \
--repo-id <huggingface-id>/<your-dataset-name> \
--raw-format dobbe \
--local-dir ./path-to-local-dataset-folder/<huggingface-id>/<your-dataset-name> \
--video 0 \
--fps 6

Sample command assuming following folder structure:

my_workspace
├── stretch_ai
├── lerobot
└── data/
   ├── my-huggingface-id/
   │   └── my-dataset
   └── default_task/
       └── default_user/
           └── default_env/
               ├── episode_1_folder
               ├── episode_2_folder
               └── episode_3_folder

# Assuming cwd is my_workspace/lerobot
python ./lerobot/scripts/push_dataset_to_hub.py \
--raw-dir ../data/default_task/default_user/default_env \
--repo-id my-huggingface-id/my-dataset \
--raw-format dobbe \
--local-dir ../data/my-huggingface-id/my-dataset \
--video 0
--fps 6

Visualizing dataset with Rerun.io (Optional)

# Sample command
python ./lerobot/scripts/visualize_dataset.py --repo-id my-huggingface-id/my-dataset --episode-index 0 --root ../data/default_task/default_user

# Specify root if you wish to use local copy of the dataset, else dataset will be pulled from web
# --repo-id: Huggingface dataset repo
# --episode-index: Which episode to visualize
# --root: Where the local copy of the huggingface dataset is stored (e.g. local-dir in the previous step, but without specific folder )
python ./lerobot/scripts/visualize_dataset.py \
--repo-id hellorobotinc/<your-dataset-name> \
--episode-index <episode-idx> \
--root ../data/default_task/default_user

Train a policy

Policy config files are located in ./lerobot/configs/policy. Env config files are located in ./lerobot/configs/env

Available policy configs for Stretch:

stretch_diffusion - default training configs for Diffusion Policy
stretch_diffusion_depth - default training configs for Diffusion Policy with depth included as input
stretch_act_real - default training configs for ACT
stretch_vqbet - default training configs for VQ-BeT

Available env configs for Stretch:

stretch_real - Standard 9 dim state space and (9+1) dim action space for Stretch
- state: (x, y, theta, lift, arm, roll, pitch, yaw, gripper)
- action: (x, y, theta, lift, arm, roll, pitch, yaw, gripper, progress)

Training configs defined in the policy yaml file can be overridden in CLI. If the config looks like below:

training:
  learning_rate: 0.001

At runtime we can override this by adding the snippet below. For more details see Hydra docs and LeRobot.

training.learning_rate=0.00001

Like training any other model with a GPU, try to adjust batch size to maximally utilize GPU vRAM.

Sample training command:

python3 lerobot/scripts/train.py \
policy=stretch_diffusion \
env=stretch_real \
wandb.enable=true \
training.batch_size=64 \
training.num_workers=16 \
dataset_repo_id=<huggingface-id>/<your-dataset-name>  \
wandb.project=<wandb-project-name>

For example:

python3 lerobot/scripts/train.py \
policy=stretch_diffusion \
env=stretch_real \
wandb.enable=true \
wandb.project=diffusion_test_project \
training.batch_size=64 \
training.num_workers=16 \
dataset_repo_id=hellorobotinc/kitchen_cabinet_diagonal
wandb.project=diffusion-kitchen-diagonal

You can also set dataset_repo_id and wandb.project in the policy config file to avoid specifying it in the CLI.

Sample loss curve for "two different tasks" trained with the same parameters

This shows that even for different tasks, loss curves should look similar

num_episodes = 50
policy=stretch_diffusion
env=stretch_real
Y-axis is loss in log scale
X-axis is num_epochs, from experience 1000 epochs is enough for good performance
Training took ~19 hours for 2000 epochs on RTX 4090
Full run available here

Evaluating a policy

On Robot:

ros2 launch stretch_ros2_bridge server.launch.py

On PC:

Specify the policy name of the weights provided:

Available policies: diffusion,diffusion_depth,act,vqbet

Specify the teleop mode according to the teleop mode used to train the policy

Available teleop modes: base_x,stationary_base,old_stationary_base

python3 -m stretch.app.lfd.ros2_lfd_leader \
--robot_ip $ROBOT_IP \
--policy_name <name-of-policy> \
--policy_path <path-to-weights-folder> \
--teleop-mode <teleop-mode>

Sample command:

python3 -m stretch.app.lfd.ros2_lfd_leader \
--robot_ip $ROBOT_IP \
--policy_path lerobot/outputs/train/2024-07-28/17-34-36_stretch_real_diffusion_default/checkpoints/100000/pretrained_model \
--policy_name diffusion \
--teleop-mode base_x

The default teleop mode is base_x which is the most common teleop mode used for training; you can omit the --teleop-mode argument if you used this mode. As with other apps, --robot_ip is also saved. A more common command would look like:

python3 -m stretch.app.lfd.ros2_lfd_leader \
--policy_path lerobot/outputs/train/2024-07-28/17-34-36_stretch_real_diffusion_default/checkpoints/100000/pretrained_model \
--policy_name diffusion

Where --policy_path is the path to the weights folder and --policy_name is the name of the policy used to train the weights, e.g. diffusion for Diffusion Policy.

Troubleshooting

Repo id must be in the form 'repo_name' or 'namespace/repo_name'

This error can be a bit hard to interpret, and manifests like this:

huggingface_hub.errors.HFValidationError: Repo id must be in the form 'repo_name' or 'namespace/repo_name': 'src/lerobot/outputs/train/2024-08-28/16-22-19_stretch_real_diffusion_default/checkpoints/030000/pretrained_model'. Use `repo_type` argument if needed.

This means that the --policy_path argument is not pointing to the correct folder. Make sure that the path is correct and that the folder contains the weights.

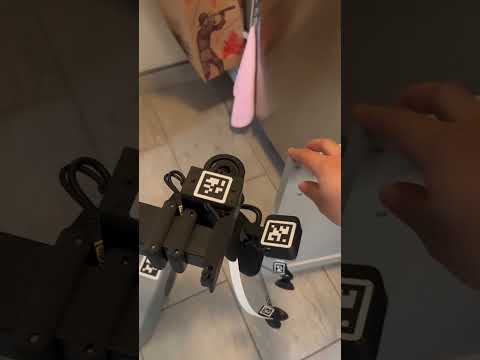

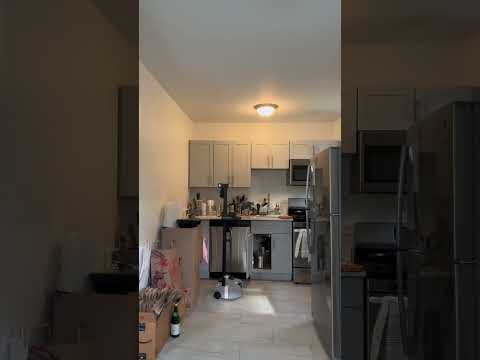

Skill in action:

Integrating a skill in a long horizon task (example)

stretch.app.ovmm_lfd_demo demonstrates an implementation of multiple skills integrated in a long horizon task generated by a code-as-policy framework with Gemma2b client. The current implementation is environment specific (e.g. it will not work in your home), but provides an example for how LfD skills can be integrated.

Details for the two trained skills can be found on our Huggingface page

Locations in this demo are pre-saved as { name: (x,y,theta) } pairs based on an earlier mapping run. Below is the full output from the run based on the prompt:

Can you bring me the bottle that's inside the cabinet? You might need to open the cabinet first, also do not use detections:

Enter a long horizon task: Can you bring me the bottle that's inside the cabinet? You might need to open the cabinet first, also do not use detections
Generated plan:
```python
def execute_task(go_to, pick, place, say, open_cabinet, close_cabinet, wave, get_detections):
    if go_to("cabinet"):
        if open_cabinet():
            if pick("bottle"):
                if go_to("user"):
                    say("Here is the bottle.")
                else:
                    say("I am sorry, I could not reach you")
            else:
                say("I am sorry, I could not pick the bottle")
        else:
            say("I am sorry, I could not open the cabinet")
    else:
        say("I am sorry, I could not go to the cabinet")
```
Proceed with plan? [y/n]: y
RES:  True
- Going to cabinet
- 0 [4.99106818e-04 1.00275503e-06 3.12203060e-03]
- 1 [4.99106818e-04 1.00275503e-06 4.52567717e-01]
- 2 [0.70500136 0.34254823 0.45256772]
- 3 [0.70500136 0.34254823 0.85715184]
==================== Waiting for -1 at goal ====================
Loading weights from local directory
/root/miniforge3/envs/stretch_ai/lib/python3.10/site-packages/torch/nn/modules/conv.py:456: UserWarning: Applied workaround for CuDNN issue, install nvrtc.so (Triggered internally at /opt/conda/conda-bld/pytorch_1702400366987/work/aten/src/ATen/native/cudnn/Conv_v8.cpp:80.)
  return F.conv2d(input, weight, bias, self.stride,
[2024-08-15T22:05:00Z INFO  re_ws_comms::server] Memory limit (954 MiB) exceeded. Dropping old log messages from the server. Clients connecting after this will not see the full history.
[LEADER] Stopping policy execution
RES:  True
- Going to bottle
- 0 [0.81259126 0.42235697 0.77612764]
- 1 [0.81259126 0.42235697 1.46725734]
- 2 [0.80167704 0.3173223  1.46725734]
- 3 [0.80167704 0.3173223  4.60884999]
- 4 [0.79134164 0.21785784 4.60884999]
- 5 [0.79134164 0.21785784 4.60884999]
- 6 [0.78100623 0.11839338 4.60884999]
- 7 [0.78100623 0.11839338 4.60884999]
- 8 [ 0.75       -0.18        4.60884999]
- 9 [ 0.75       -0.18        1.57324166]
==================== Waiting for -1 at goal ====================
Loading weights from local directory
[LEADER] Stopping policy execution
RES:  True
- Going to user
- 0 [ 0.79606889 -0.09356569  1.6107392 ]
- 1 [ 0.79606889 -0.09356569  3.02459477]
- 2 [0.         0.         3.02459477]
- 3 [0.   0.   1.57]
==================== Waiting for -1 at goal ====================
[STRETCH SAYS]:  Here is the bottle.
