Data Collection for Stretch

Our data collection system is based on a low-cost teleoperation framework called Dex Teleop. You use a webcam to track a unique tool with AR markers, and the robot follows the tool. This system is designed to be easy to use and it allows us to collect high-quality data for training robot learning algorithms.

Prerequisites:

Follow the instructions for installation of stretch_ai with Python 3.10 for both PC and robot.

Make sure you have the optional dependencies installed for Dex Teleop:

python -m pip install webcam mediapipe

On PC:

• Linux instructions: if using a Linux PC, run install_dex_teleop.sh to update udev rules

  cd /path/to/stretch_ai/scripts
  ./install_dex_teleop.sh

• Camera calibration for dex teleop

On Robot:

First, generate specialized URDFs. These are special versions of the robot model that are needed to run the dex teleop app. You generate them by running:

cd stretch_ai
python3 src/stretch/app/dex_teleop/prepare_specialized_urdfs.py

Then, move URDFs from robot to PC. URDFs should now have been generated into the stretch_ai folder on the robot:

stretch_base_rotation_ik_with_fixed_wrist.urdf
stretch_base_rotation_ik.urdf
stretch_base_translation_ik_with_fixed_wrist.urdf
stretch_base_translation_ik.urdf

Using your preferred method, move the following URDF files into the stretch_ai folder on your PC (or wherever you intend to run the dex teleop app from).

Quickstart: Record Some Data

On the robot run:

ros2 launch stretch_ros2_bridge server.launch.py

On the PC run:

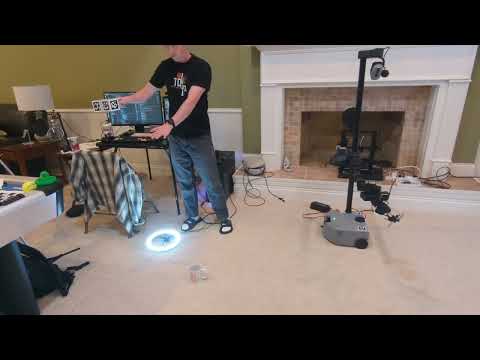

Click this thumbnail to see data collection teleop in action:

python -m stretch.app.dex_teleop.ros2_leader -i $ROBOT_IP --task-name default_task

A GUI displaying RGB and depth feeds from both cameras will now pop up. All commands are sent by pressing the keyboard with this GUI selected as the active window.

You can now record demonstrations by pressing spacebar to start and stop recording. See Recording demonstrations with Dex Teleop for more details. After a trial is over, press y/n to record if it was successful.

Recording demonstrations with Dex Teleop

Launch dex teleop follower on robot:

ros2 launch stretch_ros2_bridge server.launch.py

Launch dex teleop leader on PC:

Currently supported teleop modes include: base_x, rotary_base, and stationary_base. Launch this command from the directory where URDFs are stored (default is root of stretch_ai)

If you have already ran an app with --robot-ip flag, such as the view_images test app, you can omit the flag in subsequent runs.

# The -s flag enables png images to be saved in addition to videos, which is faster for model training if training is CPU bound (no video decoding)

TASK_NAME=<name-of-task>
python3 -m stretch.app.dex_teleop.ros2_leader --robot_ip $ROBOT_IP --task-name $TASK_NAME --teleop-mode <teleop-mode> --save-images --clutch

For example:

python3 -m stretch.app.dex_teleop.ros2_leader --task-name default_task --teleop-mode base_x --save-images --clutch

The optional --clutch flag enables the clutch. While your hand is over the dex teleop webcam, the robot will not move. This makes it easier to operate the robot and to collect data.

Teleop Modes

There are three teleop modes available:

• base_x: Allows for translation of the robot base in the x direction
• rotary_base: Allows for rotation of the robot base
• stationary_base: Allows for no movement of the robot base

The default is base_x. So, if you want to use base_x, you can omit the --teleop-mode flag:

python3 -m stretch.app.dex_teleop.ros2_leader --task-name default_task --save-images

Record episodes

• Press spacebar to start recording a demonstration, press spacebar again to end demonstration
• Demonstrations will be stored in stretch_ai/data/name-of-task/default_user/default_env

Tips for collecting effective demonstrations

1. Task direction alignment

Align the dex teleop webcam so that the top of the webcam is facing the same direction as the direction of arm extension. Also, in order to have a better view it is recommended to not have the dex teleop setup directly behind the robot, and instead be placed at a sideways displacement.

2. Taping for reference

For use in downstream LfD training, it is important to consider dataset distribution when collecting demonstrations. The policy is able to handle small offsets in starting configuration if such variation is also demonstrated in the training data.

Therefore, it can be useful to tape out a reference position as a basis for varying starting positions you want to introduce in the dataset.

3. Episode quality

Episodes should reflect the way you want the robot to complete the task. Your first couple of runs doing the task will not be consistent, but will improve as you learn the feel for the teleoperation. It is recommended to start collecting demonstrations used for training only after sufficient practice with the task.

Task direction alignment	Taping for positional reference
