gf-radio.md

description
GF Flutter Radio Button is a custom radio button with many predefine properties. it allows the user to choose only one of a predefined set of mutually exclusive options.

GF Flutter Radio Button

Flutter RadioBox Button permits the user to select only one option in any two sets of mutual options. The radio button has to be checked or unchecked only once in a given set of options.

GF Flutter Radio Button and its Usage

GFRadioButton has to be checked only one at a time and other options are by default unchecked as radio buttons allow only one option to be checked at a time.

The code below gives a simple Flutter radio button.

int groupValue = 0;

GFRadio(
  size: GFSize.SMALL,
  value: 2,
  groupValue: groupValue,
  onChanged: (value) {
    setState(() {
      groupValue = value;
    });
  },
  inactiveIcon: null,
  activeBorderColor: GFColors.SUCCESS,
  radioColor: GFColors.SUCCESS,
),

Flutter Basic Radio Button

GFRadioButton has many types in it and the basic type is a circular radio button. The shape is of a circle and hence the name circular and it is a basic type as shown in the below image. Let us look at the example below

int groupValue = 0;

GFCard(
    content: Row(
      mainAxisAlignment: MainAxisAlignment.spaceBetween,
      children: <Widget>[
        GFRadio(
          size: GFSize.LARGE,
          activeBorderColor: GFColors.SUCCESS,
          value: 0,
          groupValue: groupValue,
          onChanged: (val) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          radioColor: GFColors.SUCCESS,
        ),
        GFRadio(
          size: GFSize.MEDIUM,
          value: 1,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          activeBorderColor: GFColors.SUCCESS,
          radioColor: GFColors.SUCCESS,
        ),
        GFRadio(
          size: GFSize.SMALL,
          value: 2,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          activeBorderColor: GFColors.SUCCESS,
          radioColor: GFColors.SUCCESS,
        ),
        GFRadio(
          size: 20,
          value: 3,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          activeBorderColor: GFColors.SUCCESS,
          radioColor: GFColors.SUCCESS,
        )
      ],
    )),

Flutter Square Radio Button

GFRadioButton can be a square type. The outer border will not have any border-radius and the shape will be of a square and hence the name square radio button as shown in the below image. Let us look at the example below :

int groupValue = 0;

GFCard(
    content: Row(
      mainAxisAlignment: MainAxisAlignment.spaceBetween,
      children: <Widget>[
        GFRadio(
          type: GFRadioType.square,
          size: GFSize.LARGE,
          value: 4,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          activeBorderColor: GFColors.SUCCESS,
          radioColor: GFColors.SUCCESS,
        ),
        GFRadio(
          type: GFRadioType.square,
          size: GFSize.MEDIUM,
          value: 5,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          activeBorderColor: GFColors.SUCCESS,
          radioColor: GFColors.SUCCESS,
        ),
        GFRadio(
          type: GFRadioType.square,
          size: GFSize.SMALL,
          value: 6,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          activeBorderColor: GFColors.SUCCESS,
          radioColor: GFColors.SUCCESS,
        ),
        GFRadio(
          type: GFRadioType.square,
          size: 20,
          value: 7,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          activeBorderColor: GFColors.SUCCESS,
          radioColor: GFColors.SUCCESS,
          activeIcon: Icon(Icons.close),
        )
      ],
    )),

Flutter Custom Radio Button Type-1

GFRadioButton can be a custom type. The outer border will have little border-radius and comes in different sizes as shown in the below image.

Let us look at the example demo code for the custom radio button below :

int groupValue = 0;

GFCard(
    content: Row(
      mainAxisAlignment: MainAxisAlignment.spaceBetween,
      children: <Widget>[
        GFRadio(
            type: GFRadioType.blunt,
            size: GFSize.LARGE,
            activeBorderColor: GFColors.SUCCESS,
            value: 8,
            groupValue: groupValue,
            onChanged: (value) {
              setState(() {
                groupValue = value;
              });
            },
            inactiveIcon: null,
            customBgColor: GFColors.SUCCESS),
        GFRadio(
          type: GFRadioType.blunt,
          size: GFSize.MEDIUM,
          value: 9,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          activeBorderColor: GFColors.SUCCESS,
          customBgColor: GFColors.SUCCESS,
        ),
        GFRadio(
          type: GFRadioType.blunt,
          size: GFSize.SMALL,
          value: 10,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          activeBorderColor: GFColors.SUCCESS,
          customBgColor: GFColors.SUCCESS,
        ),
        GFRadio(
          type: GFRadioType.blunt,
          size: 25,
          value: 11,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          activeBorderColor: GFColors.SUCCESS,
          customBgColor: GFColors.SUCCESS,
        )
      ],
    )),

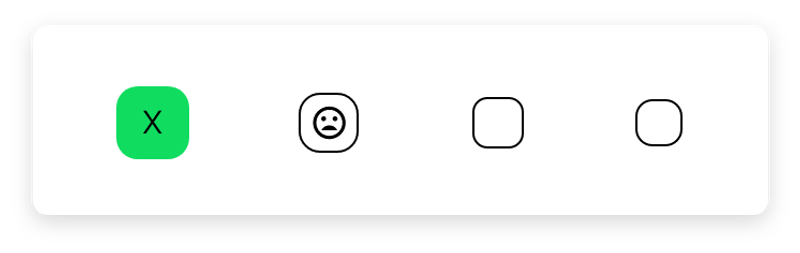

Flutter Custom Radio Button Type 2

GFRadioButton can be a custom type 2 wherein the checked box can be any type of widget like an icon, background color, etc as shown in the image below.

Let us look at the example code below :

int groupValue = 0;

GFCard(
    content: Row(
      mainAxisAlignment: MainAxisAlignment.spaceBetween,
      children: <Widget>[
        GFRadio(
          type: GFRadioType.custom,
          activeIcon: Icon(Icons.check),
          radioColor: Colors.red,
          size: GFSize.LARGE,
          activeBgColor: GFColors.SUCCESS,
          inactiveBorderColor: GFColors.DARK,
          activeBorderColor: GFColors.SUCCESS,
          value: 12,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
        ),
        GFRadio(
          type: GFRadioType.custom,
          activeIcon: Icon(Icons.sentiment_satisfied),
          size: GFSize.MEDIUM,
          value: 13,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: Icon(Icons.sentiment_dissatisfied),
          customBgColor: GFColors.WARNING,
          activeBgColor: GFColors.SUCCESS,
          activeBorderColor: GFColors.SUCCESS,
        ),
        GFRadio(
          type: GFRadioType.blunt,
          size: GFSize.SMALL,
          value: 14,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          customBgColor: GFColors.SUCCESS,
          activeBorderColor: GFColors.SUCCESS,
        ),
        GFRadio(
          type: GFRadioType.blunt,
          size: 25,
          value: 15,
          groupValue: groupValue,
          onChanged: (value) {
            setState(() {
              groupValue = value;
            });
          },
          inactiveIcon: null,
          activeBorderColor: GFColors.SUCCESS,
          customBgColor: GFColors.SUCCESS,
        ),
      ],
    )),

GF Flutter Radio Button Custom Properties

The look and feel of the GFRadio button can be customized using the GFRadio properties.

Name	Description
type	type of [GFRadioType] which is of four type is basic, sqaure, circular and custom
size	type of [double] which is GFSize ie, small, medium and large and can use any double value
radioColor	type pf [Color] used to change the checkcolor when the radio button is active
activeBgColor	type of [Color] used to change the backgroundColor of the active radio button
inactiveBgColor	type of [Color] used to change the backgroundColor of the inactive radio button
activeBorderColor	type of [Color] used to change the border color of the active radio button
inactiveBorderColor	type of [Color] used to change the border color of the inactive radio button
onChanged	Called when the user checks or unchecks the radio button
activeIcon	type of Widget used to change the radio button's active icon
inactiveIcon	type of [Widget] used to change the radio button's inactive icon
customBgColor	type of [Color] used to change the background color of the custom active radio button only
autofocus	on true state this widget will be selected as the initial focus when no other node in its scope is currently focused
focusNode	an optional focus node to use as the focus node for this widget.
value	The value represented by this radio button.
groupValue	The currently selected value for a group of radio buttons. Radio button is considered selected if its [value] matches the [groupValue].
toggleable	sets the radio value
