description
GF Flutter Border is a box-like line that has four sides top, bottom, left, and right. It acts like an outer line surrounding a widget

GF Flutter Border

GF Flutter Border is a Flutter Border that has all four sides and it makes a thin line around any widget.

GF Flutter Border

GFBorder can be used as a solid border, dashed border, or dotted border for images, texts, or even buttons. Let us see all of them one by one below

GF Flutter Solid Border

GFSolid Border is a solid line and a basic border used for the many components. GFBorder property [dashedLine] takes an array of doubles like[2, 0] to display a solid border.

The below example code shows a basic Flutter solid border.

GF Flutter Solid Border Widget

Container(
  margin: EdgeInsets.symmetric(
      horizontal: 15, vertical: 15),
  child: GFBorder(
    color: Color(0xFF19CA4B),
    dashedLine: [2, 0],
    type: GFBorderType.rect,
    child: Image.asset(
      'assets image here',
      width: MediaQuery.of(context).size.width,
      fit: BoxFit.fitWidth,
    ),
  ),
),

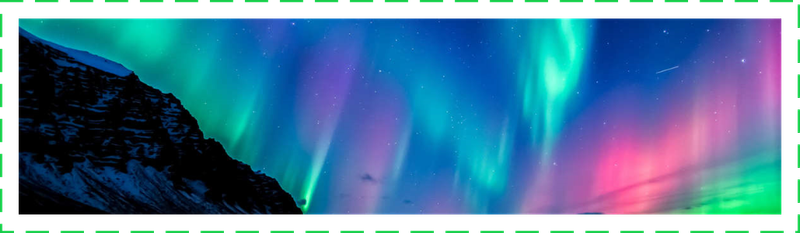

GF Flutter Dashed Border

GFDashed Border is a customized border with dashed patterns used in UI designs. GFBorder property [dashedLine] takes an array of doubles[4, 6]to display a dashed border.

The below example code shows a dashed border in Flutter

GF Flutter Dash Border Widget

Container(
  margin: EdgeInsets.symmetric(
      horizontal: 15, vertical: 15),
  child: GFBorder(
    dashedLine: [4, 6],
    type: GFBorderType.rect,
    color: Color(0xFF19CA4B),
    child: Image.asset(
      'assets image here',
      width: MediaQuery.of(context).size.width,
      fit: BoxFit.fitWidth,
    ),
  ),
),

GF Flutter Dotted Border

GFDotted Border is a customized border with dotted patterns used in many UI designs. GFBorder property [dashedLine] takes an array of doubles[2, 1]to display dotted border.

The below example code gives a dotted border around the image as shown below

GF Flutter Dot Border Widget

Container(
  margin: EdgeInsets.symmetric(
      horizontal: 15, vertical: 15),
  child: GFBorder(
    color: Color(0xFF19CA4B),
    dashedLine: [2, 1],
    type: GFBorderType.rect,
    child: Image.asset(
      'assets image here',
      width: MediaQuery.of(context).size.width,
      fit: BoxFit.fitWidth,
    ),
  ),
),

GF Flutter Border Types

GFBorder has many types in it type according to the parent widget. To make the UI easy we have different types of borders that are listed below.

GFBorderType.rect

GFBorder has a rectangle type of border as shown in the image. It can also be a square type that is based on the widget for whom the border is getting applied. If the image is a square image, then the border will be a square border. It all depends on the parent widget. In the below example we can see a rectangle border and its code.

GFBorder property type takes GFBorderType.rect to display borders with no rounded corners as shown in the below image.

GF Flutter Rectange Border Widget

Container(
  margin: EdgeInsets.symmetric(
      horizontal: 15, vertical: 15),
  child: GFBorder(
    color: Color(0xFF19CA4B),
    dashedLine: [2, 0],
    type: GFBorderType.rect,
    child: Container(
      height: 100,
      color: Color(0xFFE9FFEF),
    ),
  ),
),

GFBorderType.rRect

GFBorder has a property similar to the rectangle border but here the difference is that we will have rounded corners to the borders.

GFBorder property type takes GFBorderType.rRect to display borders with rounded corners. The below image shows rounded corners with the rRect property and the code is also given below

GF Flutter Ractange dot Border Widget

Container(
  margin: EdgeInsets.symmetric(
      horizontal: 15, vertical: 15),
  child: GFBorder(
    radius: Radius.circular(20),
    color: Color(0xFF19CA4B),
    dashedLine: [2, 0],
    type: GFBorderType.rRect,
    child: Container(
      height: 100,
      color: Color(0xFFE9FFEF),
    ),
  ),
),

GFBorderType.oval

GFBorder has a property called oval type. Here the border shape will be oval as shown in the image below and the code for the same is below.

GFBorder property type takes GFBorderType.oval to display oval shape borders.

GF Flutter Oval Border Widget

Container(
  width: 50,
  height: 60,
  child: GFBorder(
    type: GFBorderType.oval,
    dashedLine: [2, 0],
    color: Color(0xFF19CA4B),
    strokeWidth: 2,
    child: Center(child: Text('Oval Border')),
  ),
),

GFBorderType.circle

GFBorder can be circular in shape. It can be a solid circle, dotted or dashed circle. The image below shows a dashed circular border with the text in the center. The code for the circular border is given below.

GFBorder property type takes GFBorderType.circle to display circular shape borders.

GF Flutter Circle Border Widget

Container(
  width: 100,
  height: 100,
  child: GFBorder(
    type: GFBorderType.circle,
    dashedLine: [4, 6],
    color: Color(0xFF19CA4B),
    strokeWidth: 2,
    child: Center(
        child: Text(
      'Circular Border',
      textAlign: TextAlign.center,
    )),
  ),
),

GF Flutter Border Custom Properties

The look and feel of the GFBorder can be customized using the GFBorder properties.

Name Description
child child of type [Widget] which can be any component or text, etc
padding padding for [child] where in padding is given to the border types
strokeWidth storkeWidth of type [double] which is used to define the thickness of the border
color color of type [Color] or GFColor which is used to change the color of the border type
dashedLine dashedLine of type [List<double>] which is used for the linear and simple dashed line of border
type type of [GFBorderType] which is used to define the different types of borders ie, circle, Rect, RRect and oval
radius radius of type [Radius] used to give a curved border only when the border type is RRect, in other cases radius will not work
