D3

D3.js Workshop

Introduction to D3

D3 (Data-Driven Documents or D3.js) is a JavaScript library for manipulating documents based on data and is used in conjunction with tools like HTML, SVG, and CSS. It's used by the New York Times to make interactive custom graphics for its news articles.

Key Components

  • HTML (HyperText Markup Language)
    • standard markup language for webpages
    • defines content
  • CSS (Cascading Style Sheets)
    • language to describe the style of a HTML document
    • describes how HTML elements should be displayed
  • JavaScript
    • scripting language for web pages
    • lightweight, interpreted, or just-in-time compiled programming language
  • SVG (Scalable Vector Graphics)
    • language for describing 2-D vector graphics in XML
  • Web Server

Getting Started

Download the files from the Github repo or the Box link provided in the workshop. The main files we will be working with are index.html, sortable.js, and bar.css.

Running D3 Locally

To run D3 locally on your PC, you need to set up a web server. Fortunately, Python makes this relatively easy. Open a terminal (i.e. Anaconda Prompt) that has access to Python and run a simple http server with the command python -m http.server <port number>. The port number is optional (default is 8000). Then open your browser and go to localhost:8000 or 127.0.0.1:8000.

Getting D3

We load the d3.js library from a CDN with the following snippet.

<script src="https://d3js.org/d3.v5.min.js"></script>

We'll also use the d3-array library to do some data wrangling to get the data in the right format for plotting.

<script src="https://d3js.org/d3-array.v2.min.js"></script>

D3 Version

We're using D3 version 5. Most of the online v5 examples are written using something called Observable notebooks (think of it like Jupyter Notebooks for JavaScript). The syntax for Observable notebooks is slightly different than what you would use for HTML. Most of the other examples on the web are for v3 or v4. Ideally, you'll want to look for examples using v4 or v5 on the web. There were some breaking changes made in the conversion from v3 to v4. Its not impossible to figure out from v3 examples but its just more errors to debug.

HTML Setup

Let's take a quick peek at our HTML file. Its pretty bare bones. The things to note are:

  • loading two JavaScript files urls.js and sortable.js
  • loading one CSS file bar.css
  • one function call createChart() which will create our chart for us within the <body> tag
<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <script src="https://d3js.org/d3.v5.min.js"></script>
  <script src="https://d3js.org/d3-array.v2.min.js"></script>
  <script src="urls.js"></script>
  <script src="sortable.js"></script>
  <link rel="stylesheet" href="bar.css">
</head>
<body>
  <script>createChart()</script>
</body>
</html>

This is what you would see if you right-click View page source Ctrl+U. Note that this is different than what you would see if you inspected the Elements tab in Chrome using your browser.

Graph Setup

Now, let's move onto our JavaScript file sortable.js and create the function createChart that we're going to call. We need to first set up our graph. We start by specifying the dimensions and margins of our graph. The standard D3 convention for setting up margins can be found at https://bl.ocks.org/mbostock/3019563

Let us follow along with our code.

First define the margin object with properties for the four sides:

let margin = {top: 80, right: 90, bottom: 30+50, left: 120}

Next define width and heightas the inner dimensions of the chart area:

width = 900 - margin.left - margin.right
height = 1500 - margin.top - margin.bottom

Lastly, define a svg element with three attributes (class, width, and height) and translate its origin to the top-left corner of the chart area with a g element.

let svg = d3.select('body').append('svg')
    .attr("class", "chart")
    .attr("width", width + margin.left + margin.right)
    .attr("height", height + margin.top + margin.bottom)
  .append("g")
    .attr("transform", "translate(${margin.left},${margin.top})")

Let's breakdown what this D3 code block is doing.

  • The first line selects the <body> tag in the HTML and appends (or nests) a svg element within the <body> element.
  • The next three lines define attributes for the svg element.
  • The second-to-last line appends a g element to svg.
  • The last line applies a transformation (a translation) to the g element.

Note: There is a D3 distinction between a 2 space and 4 space indentation. Two space indentation means you are returning a new selection and 4 space indentation means working with an existing selection. Don't worry if that means nothing to you at the moment. Just know that its intentional.

Reading in Data

We will be looking at data from Major League Baseball 2018 season and the accumulation of wins by each team as the season progresses.

The data resides in a Github gist. There is also a copy in our folder but I wanted to show you that you can also read files from the web.

const fileLocation = 'https://gist.githubusercontent.com/caocscar/8cdb75721ea4f6c8a032a00ebc73516c/raw/854bbee2faffb4f6947b6b6c2424b18ca5a8970e/mlb2018.csv'

Next we will read the file, parse it, convert it into an array of objects (line 1) and filter it by date using our custom filterData function (lines 2 & 3). I chose April 4th as the start date as every team has won at least one game by then (helping avoid some other complications with adding teams dynamically).

DATA = await d3.csv(fileLocation, type)
let chartDate = new Date(2018,3,3)
let data = filterData(chartDate)

Note: JavaScript starts month at index 0.

The function type takes in the data and parses the date strings into a JavaScript Date format. You can think of d as a row of the data.

function type(d) {
  const formatDate = d3.timeParse('%Y%m%d')
  d.date = formatDate(d.date)
  return d
}

Note: d3.csv reads in all columns as strings and you usually convert them to numeric using a type function. There is a d3.autoType function which is also available to do automatic conversions.

The filterData function filters the data up to the given date. Here I'm using arrow => functions for brevity. They are similar to lambda functions in Python.

function filterData(chartDate) {
  const snapshot = DATA.filter(d => d.date <= chartDate)
  const wins = d3.rollup(snapshot, v => v.length, d => d.team)
  return Array.from(wins, ([key, value]) => ({'team':key, 'value':value}))
}

The function does some data wrangling for us.

  1. Filters the data by date DATA.filter(d => d.date <= chartDate).
  2. Performs a groupby operation by team and counts how many times they appear (or win) in the data d3.rollup(snapshot, v => v.length, d => d.team).
  3. Returns the data in the desired format for us (an Array of JavaScript Objects) Array.from(wins, ([key, value]) => ({'team':key, 'value':value})).

I could have done the data wrangling in another language like Python or R and created a different dataset to be read in but wanted to show you that D3 and JavaScript can also do similar things. Our data should look like this after being returned by filterData. data variable

Setting up D3 Scales

Since we are making a horizontal bar chart, we will utilize two scale functions: scaleLinear and scaleBand. scaleLinear creates a linear mapping while scaleBand is a mapping specific for bar charts. It will split the range into n (number of teams) bands and compute the positions and widths of the bands.

let y = d3.scaleBand()
    .domain(data.map(d => d.team).reverse())
    .range([height, 0])
    .padding(0.33)

let x = d3.scaleLinear()
    .domain([0, Math.ceil(d3.max(data, d => d.value)/5)*5])
    .range([0, width])

Adding Axes

We define our axis properties. Here it's the scale we want to use x, orientation axisTop() and approximately how many ticks it should display ticks(6). We append another group element to the already defined svg variable using .append("g"), assign two classes x axis and then call the axis generator xAxis to draw it with the specified arguments. Similarly for the y-axis.

let xAxis = d3.axisTop(x)
    .ticks(6)

svg.append("g")
    .attr("class", "x axis")
    .call(xAxis);

let yAxis = d3.axisLeft(y)
    .tickFormat('')

svg.append("g")
    .attr("class", "y axis")
    .call(yAxis);

create x-axis

In addition to the axes, we want to add gridlines to the x-axis. Gridlines are coded very similarly to axes.

let gridlines = d3.axisTop(x)
    .ticks(6)
    .tickSize(-height)
    .tickFormat("")

svg.append("g")
    .attr("class", "grid")
    .call(gridlines)

Let's add axes labels now.

labels = svg.append('g')
    .attr('class', 'label')

labels.append('text')
    .attr('transform', `translate(${width},-40)`)
    .text('Wins')

ylabel = labels.append('text')
    .attr('transform', `translate(-80,${height/2} rotate(-90)`)
    .text('Teams')

Individual Team Bar Charts

Next, we will start displaying our data on the graph. Ultimately, we want to show the progression of total games won for each baseball game over a period of time. Each team will be represented by a bar, text, logo and a label.

To set up the teams, we must first create groups to contain the collective information for each team.

In D3, instead of telling D3 what to do, think of it as you are telling D3 what you want. The following piece of code constructs groups for each of the teams.

let bar = svg.selectAll(".bar")
  .data(data)
  .join("g") // equivalent to .enter().append('g')
    .attr("class", "bar")
    .attr("transform", d => `translate(0,${y(d.team)})`)

Here's a breakdown of the above code block:

  • svg.selectAll(".bar) says you want to select all element of type class="bar" (even if they don't exist at the beginning)
  • .data(data) binds the data to this empty D3 selection
  • .join(g) creates g elements for each row of data (i.e. team)

Then for each g element:

  • .attr('class', 'bar') assigns class="bar"
  • .attr("transform", d => 'translate(0,${y(d.team)})') assigns a transformation (x,y) Create bar element

Note: Data joins in D3 are probably one of the more harder concepts to grasp. Here is Mike Bostock's blog on joins and selections.

Now we will add rectangles to each bar element and set the bar width corresponding to the wins for each respective team .attr("width", d => x(d.value)). We style the bar using .style('fill', d => d3.interpolateRdYlBu(d.value/100)) which defines the number of games won by each team as a fraction between 0 and 1. We will add a color scheme to visually encode the number of wins (the bars will gradually change from red to yellow to blue as teams win more games). Its really not needed for the graph but I wanted to show you how to do it.

let rects = bar.append('rect')
    .attr("width", d => x(d.value))
    .attr("height", y.bandwidth())
    .style('fill', d => d3.interpolateRdYlBu(d.value/100))

Create bar element

More information on chromatic schemes can be found here: https://observablehq.com/@d3/color-schemes?collection=@d3/d3-scale-chromatic

Let's add labels to identify each team.

bar.append('text')
    .attr('class', 'team')
    .attr('x', -10)
    .attr('y', y.bandwidth()/2 + 5)
    .text(d => d.team)

As well as logos for each team.

const imgsize = 40
let imgs = bar.append("svg:image")
    .attr('class', 'logo')
    .attr('x', d => x(d.value) + 5)
    .attr('y', -5)
    .attr('width', imgsize)
    .attr('height', imgsize)
    .attr("xlink:href", d => `http://www.capsinfo.com/images/MLB_Team_Logos/${urls[d.team]}.png`)

And a label for the number of games the team has won.

let barLabels = bar.append('text')
    .attr('class', 'barlabel')
    .attr('x', d => x(d.value) + 10 + imgsize)
    .attr('y', y.bandwidth()/2 + 5)
    .text(d => d.value)

Added team, logo and games won labels

And lastly, we add the date to display the time frame.

const formatDate = d3.timeFormat('%b %-d, %Y')
let dateLabel = labels.append('text')
    .attr('id', 'date')
    .attr('transform', `translate(0,-40)`)
    .text(formatDate(chartDate))

Exercise #1 (Vertical Bar Chart)

Lets try to apply what we've learned so far with an exercise.

Go into the exercise_1 folder and open up exercise_1.js. Change the url to localhost:8000/exercise_1. You should see a horizontal bar chart. Starting graph for exercise #1

The goal of the exercise is to transform this horizontal bar chart into a vertical bar chart with the labels on the outside of the bars. Ending graph for exercise #1

To approach this, we can split it up into a couple steps:

  1. Switching from a bar chart horiziontal to vertical is essentially changing the scaling of the axes. Try using scaleBand for x and scaleLinear for y and change the range appropriately.

  2. We must switch the range of data in the domain. How should we do that?

  3. We also have to consider how the rectangles were specified. What is the new height and width? What is the new x and y?

  4. Position the bar labels accordingly.

Animating the Graph

Now that we have an idea of how the graph set up and plotting works, we will dive into animation. Going back to our inital example, the animation happens within HTML's setInterval() method. The setInterval() method calls a function at specified intervals (in our case, T). Our function will perform one transition every interval.

For each transition, we need to do the following:

  • update the date
  • re-construct a new dataset up to current date
  • update the x-axis and gridlines
  • update the bar chart
  • sort the data and update the y-axis

Here we set up the period, T, and assign a variable name to our setInterval method. The first thing we do is increment the date by one day and then update the dateLabel variable with new text.

const T = 300
let dailyUpdate = setInterval(function() {
  chartDate = d3.timeDay.offset(chartDate,1)
  dateLabel.text(formatDate(chartDate))
// ...
}, T);

We need to update our dataset with our new date.

data = filterData(chartDate)

We also need to update the graph's axes to make them responsive to the changing scores. We do this by updating the x.domain and then re-calling the xAxis and gridlines variables which are dependent on the variable x.

For the x-axis, we are incrementing the scale by fives (arbitrary). D3 also has a .nice() method which you can add to let D3 choose a "nice" limit for you.

x.domain([0, Math.ceil(d3.max(data, d => d.value)/5)*5]);
svg.select('.x.axis').transition().duration(T)
    .call(xAxis);
svg.select('.grid').transition().duration(T)
    .call(gridlines);

Here we update each team's bar graph. We attach our updated dataset to rects. We then re-specify the width attribute and fill style. If we did just this, this would actually give it the effect of stop-motion animation. We add the .transition().duration(T) part to smooth the transition. Similarly, we do the same for the logos and the bar labels. For the logos, we just need to update the x attribute and for the labels, we need to update the x, y, text attributes.

rects.data(data)
  .transition().duration(T)
    .attr("width", d => x(d.value))
    .style('fill', d => d3.interpolateRdYlBu(d.value/100))

imgs.data(data)
  .transition().duration(T)
    .attr('x', d => x(d.value) + 5)

barLabels.data(data)
  .transition().duration(T)
    .attr('x', d => x(d.value) + 10 + imgsize)
    .attr('y', y.bandwidth()/2 + 5)
    .text(d => d.value)

For the y-axis, we need to update the y.domain. But we need to sort our new dataset first. We then update our bar variable by changing the transform attribute.

data.sort((a,b) => d3.descending(a.value,b.value));
y.domain(data.map(d => d.team).reverse());
bar.transition().duration(T)
    .attr("transform", d => `translate(0,${y(d.team)})`)

Recall that the bar variable points to a group of g elements where we have grouped a bunched of other elements together. This has the advantage of allowing us to make one call to move them all instead of multiple separate calls. These elements include the rectangle, team text, logo, and bar label. g element with 4 nested elements

Lastly, we have to define an if statement to check if its the end of the season so we can stop the forever loop using clearInterval() to clear the timer we set earlier with setInterval().

if (chartDate > new Date(2018,9,1)) {
    clearInterval(dailyUpdate)
}

Exercise #2 (Sort the Chart)

We will start with the solution from Exercise #1.

Go into folder exercise_2 and open up index.html and exercise_2.js.

Our goal is to add sorting to our graph. We want to be able to sort alphabetically and numerically with a click of a button.

Sort alphabetically: Sorted alphabetically

Sort numerically: Sorted numerically

We will need to update both the HTML as well as the JavaScript. Here are some hints.

Add this HTML snippet to the body of index.html to add two buttons

<div id="option1">
    <input name="alpabeticalButton"
            type="button"
            value="Sort Alphabetically"
            onclick="updateAlpha()" />
</div>
<div id="option2">
    <input name="numericalButton"
            type="button"
            value="Sort Numerically"
            onclick="updateNum()" />
</div>

Hint: Create the function updateAlpha(). The function should do 3 things:

  1. Sort the data. To do a sort with D3, you would write something like this data.sort((a,b) => d3.ascending(a.COLUMN, b.COLUMN)) where COLUMN is the name of your key or column
  2. Define the new order of teams and call the axis generator again to update the graph's x-axis.
// I've started the solution for you.
// You just need to finish it (ellipses indicate where)
x.domain(...)
svg.select(".xaxis") ...
  1. Reassign the values to update the height and the labels of the graph
bar.selectAll('rect') ...
bar.selectAll('.barlabel') ...

If you can get this, then adding the other sort option should be more straightforward. If you get this working, try changing the dataset to see if it still works.

Exercise #3 (Animated Sort)

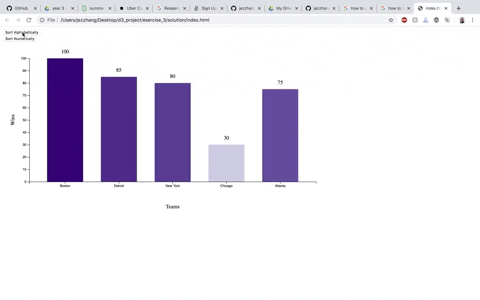

For our last exercise, we will animate the sorting in exercise #2. Recall, we just did some stop-motion animation in exercise #2 (albeit two frames).

Alt Text

Although this may sound hard, it is actually quite simple. All you have to do is add a transition to each moving part of the graph (rectangles, x-axis and bar labels) and define a time duration for the animation to occur.

Easing

If you get the transition working, try adding an easing function (e.g. .ease(d3.easeBounce)) to the transition. Eased transitions control the motion of the elements during a transition. Here are some examples of how to use it (v4). https://bl.ocks.org/d3noob/1ea51d03775b9650e8dfd03474e202fe

Clipped Path

Let's go over the code we've skipped so far.

d3.select('.chart').append("defs")
  .append("clipPath")
    .attr("id", "clip")
  .append("rect")
    .attr('x', 0)
    .attr('y', 0)
    .attr("width", width + margin.left + margin.right)
    .attr("height", 0.4*height)

This piece of D3 code creates the following html code snippet.

<defs>
  <clipPath id="clip">
    <rect x="0" y="0" width="900" height="536">
  </clipPath>
</defs>

If we inspect the rect element using inspector tool in the browser, we can see that it covers the top part of our bar chart. Its not currently drawn because of the <defs> tag which means that we just want to store the object and use it at a later time. Well now is the time. We can use this rect element to clip our chart to create a different effect. In our css file, we commented out one piece of code.

.chart {
  clip-path: url(#clip);
}

This css code block wants to clip the chart class with an element that has id="clip" (our clipPath SVG element). Let's uncomment it and run the code again. See how we are getting the effect of teams entering and leaving the chart from the bottom. Nothing about our base chart has changed. We are just using some visual trickery to create this effect.

References

Mike Bostock's blog (creator of D3.js)
https://bost.ocks.org/mike/

A beginner's tutorial to D3.js by Mike Bostock
https://bost.ocks.org/mike/circles/

Gallery of D3.js examples
https://bl.ocks.org/

Another gallery of simple D3.js examples
https://www.d3-graph-gallery.com/index.html

D3.js e-book to understand basics (they have books for v3, v4, and v5). It has line-by-line breakdown of code. https://leanpub.com/d3-t-and-t-v5

Alex's sandbox of D3.js examples
https://github.com/caocscar/d3js-examples
