Compositing.md

Compositing functions

The functions only exist on the chain and not on the root (art.x().overlay() not art.overlay()).

.overlay(overlain, options[, callback]);

Inset the passed ascii graphic onto the existing buffer

.lines(start, stop[, callback]);

subset the lines of the buffer

.join(text[, callback]);

attach the given multi-line text to the current buffer at it's end.

Examples

ascii-art allows you to construct complex ASCII/ANSI compositions easily.

Let's say you want to impress your friends with oblique references to sci-fi but also address the challenges humanity faces in regards to the environment, but to do it with a glib comedic wit. I might try something like:

art.artwork({
	artwork:'textfiles.com/art/st-char.asc'
}).lines(31, 45, function(rendered){
	//cleanup non-unix terminators
	rendered = rendered.replace(/\r/g, '');
	rendered = colorInBonesShirt(rendered);
	art.image({
		filepath :'~/Images/earth_in_space.jpg',
		alphabet : 'ultra-wide'
	}).overlay(rendered, {
		x: 0,
		y: -1,
		style: 'red+blink',
		transparent: '&'
	}, function(final){
		console.log(final);
	});
});

to get:

Or maybe I've got A BBS wall I want to have some dynamic info on.. I could make that with:

art.font('Ghost Wire BBS', 'Doom', function(logo){
    art.font('No place like home', 'rusted', function(subtext){
        art.table({
            verticalBar : ' ',
            horizontalBar : ' ',
            intersection : ' ',
            data:[
                {name: art.style('current users', 'red'), value: '203'},
                {name: 'operator', value: 'vince.vega'},
                {name: 'dial-in', value: '(917)555-4202'},
            ]
        }).lines(2, function(table){
            art.image({
                filepath :'~/Images/starburst_red.jpg',
                alphabet : 'ultra-wide'
            }).lines(2, 30).overlay(logo, {
                x: 0,
                y: 0,
                style: 'blue',
            }).overlay(subtext, {
                x: 19,
                y: 8,
                style: 'yellow',
            }).overlay(table, {
                x: -1,
                y: -1,
                style: 'green',
            }, function(final){
                console.log(final);
            });
        });
    });
});

Sometimes we have to create a splash for an intranet app:

art.image({
	width : 40,
	filepath : parentDir+'/Images/initech.png',
	alphabet : 'wide'
}).font('INITECH', 'Doom', 'cyan', function(ascii){
	console.log(ascii);
});

Which produces (from this and this):

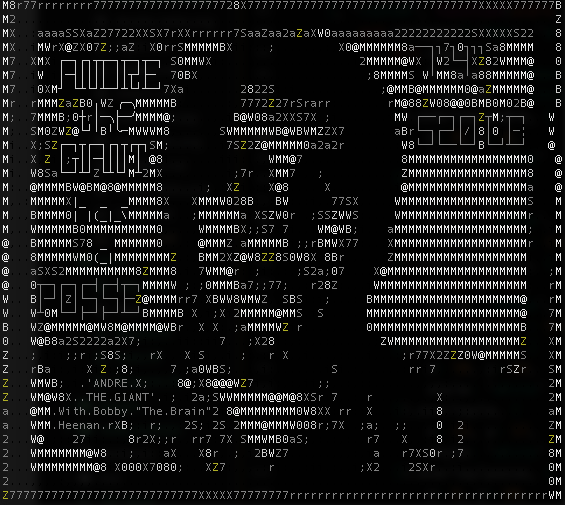

I used to have an apartment in Savannah in the mid 90s where a young artist slapped a (now well known) sticker on the door. I came home to see this sticker everyday for quite a while, so it became an old friend. But when you digitize an image, the text becomes unreadable... so to recreate that image in ascii would take a bunch of tedious hand work, so what would it take to regenerate that?

art.table({
    data:[
        {text: '    .\'ANDRE.    '},
        {text: '   ..THE.GIANT\'.  '},
        {text: '.With.Bobby."The.Brain"'},
        {text: '.Heenan.'}
    ],
    verticalBar : ' ',
    horizontalBar : ' ',
    intersection : ' '
}).lines(2, function(table){
    art.strings([
        'ANDRE',
        'the',
        'GIANT',
        'POSSE',
        '7\'4"',
        '520 LB'
    ], 'rusted', function(andre, the, giant, posse, height, weight){
        art.strings([ 'has', 'a'], 'twopoint', function(has, a){
            art.image({
                filepath :'/Images/andre_has_a_posse.jpeg',
                alphabet : 'ultra-wide'
            }).overlay(andre, {
                x: 8, y: 4,
                style: 'white'
            }).overlay(the, {
                x: 10, y: 7,
                style: 'white',
                transparent : true
            }).overlay(giant, {
                x: 8, y: 10,
                style: 'white',
                transparent : true
            }).overlay(has, {
                x: 10, y: 14,
                style: 'white'
            }).overlay(a, {
                x: 13, y: 17,
                style: 'white'
            }).overlay(posse, {
                x: 5, y: 20,
                style: 'bright_black',
                transparent: true
            }).overlay(height, {
                x: 59, y: 3,
                style: 'bright_black',
                transparent: true
            }).overlay(weight, {
                x: 59, y: 8,
                style: 'bright_black',
                transparent: true
            }).overlay(table, {
                x: 6, y: -6,
                style: 'bright_black',
                transparent: true
            }, function(final){
                console.log(final);
            });
        });
    });
});

Now I can put it on any portal I like!
