CallAPI Example

English | 中文

This document mainly describes how to quickly run the CallAPI sample project.

1. Enable Service

  • Follow the Account Document to Access the App ID and App Certificate.
  • Follow Signaling(Agora Rtm) Beginner's guide to enable signaling in Agora Console.
  • [Options]Enable and Configure Agora Chat to Access Your AppKey.

2. Run the Example

  • Environment Preparation

    • Xcode version 14.0 or above
    • Minimum supported system: iOS 13.0
    • Please ensure that your project is set up with a valid developer signature.

  • Clone or directly download the project source code.

  • Fill in the Agora APP ID, APP certificate, and AgoraChat App Key in the project's KeyCenter.swift (if you do not need to experience the AgoraChat custom signaling process, you can set IMAppKey to "")

    static var AppId: String = <#Your AppId#>
static var Certificate: String = <#Your Certificate#>
static var IMAppKey: String = <#Your Agora Chat AppKey#>

  • Open the terminal, navigate to the Podfile directory, and execute the pod install command.

  • Finally, open CallAPI.xcworkspace and run it to start your experience.

3. Project Introduction

3.1 Overview

1v1 Private Room is Agora's 1v1 video social scenario solution. It integrates Agora's RTC and RTM SDK products and capabilities to ensure optimal performance, such as smoothness, high definition, and instant connection for 1v1 interactions. This integration significantly lowers the development threshold and supports rapid deployment.

CallApi is an open-source call invitation module that focuses purely on business logic, allowing you to customize and modify it freely without restricting your business processes.

CallApi does not involve any UI, enabling you to flexibly customize the UI according to your needs.

3.2 Role Introduction

  • Caller: The party that initiates the call and invites the other party to join the conversation. The caller actively sends a call request to establish a video call connection and sends an invitation to the callee.
  • Callee: The party that receives the call request and is invited to join the conversation. Upon receiving the caller's invitation, the callee can either accept or decline the call. If the call is accepted, a video call connection is established with the caller.

3.3 Core Capabilities

  • Call: The caller initiates a call.
  • Cancel Call: The caller can cancel the call to interrupt the current call before it is successfully connected.
  • Accept Call: The callee can accept the call after receiving the caller's request.
  • Reject Call: The callee can decline the call after receiving the caller's request.
  • Hang Up: Either the caller or callee can initiate a hang-up request to end the current call during the conversation.

3.4 Gameplay Introduction

  • 1v1 Scenario: Typically in stranger social scenarios, users can filter potential matches based on photos and personal profiles, or randomly match with other users through location and tags, allowing two users to engage in a private 1v1 video call. During the call, both users are defaulted to have their cameras and microphones on, sending and receiving audio and video streams bidirectionally.
  • Showroom to 1v1 Scenario: During a live broadcast, users can pay to initiate a 1v1 video call with the host. Once the call is connected, the host's original live stream does not close but stops broadcasting, allowing the host to transition to the 1v1 video call with the paying user. After the 1v1 video call ends, the host transitions back to the original live stream to continue broadcasting.

4. Quick Integration

Add dependencies

  • Copy the example code from the iOS directory to your own project, for example, at the same level as the Podfile.
  • Add the following line to your Podfile:
    pod 'CallAPI', :path => './iOS'
  • If your project already uses Agora's RTC or RTM SDK:
  • Please ensure that the SDK versions are not lower than the following:
    • AgoraRtm: 2.2.0
    • AgoraRtcEngine_Special_iOS: 4.1.1.26
  • If the versions of the external dependencies differ from the above, please modify the corresponding SDK versions in the CallAPI.podspec file:
    s.dependency 'AgoraRtcEngine_Special_iOS', '4.1.1.26'
s.dependency 'AgoraRtm_iOS', '2.2.0'
  • Open the terminal and execute the pod install command to integrate the CallAPI code into your project.

Implement a 1v1 call

Initialize CallRtmManager

let rtmManager = CallRtmManager(appId: <#AppId#>,
                                userId: <#UserId#>,
                                rtmClient: nil)

Add and listen for CallRtmManager state callbacks.

rtmManager.delegate = self

extension ViewController: ICallRtmManagerListener {
    func onConnected() {
      // Network connected, signaling can be sent and received normally.
    }

    func onDisconnected() {
      // Network not connected, signaling cannot be sent or received at this time; the business layer can handle exceptions based on the current status.
    }

    func onTokenPrivilegeWillExpire(channelName: String) {
      // Token expired, need to refresh the RTM Token.
    }
}

Initialize CallRtmSignalClient

let signalClient = CallRtmSignalClient(rtmClient: rtmManager.getRtmClient())

Initialize CallAPI

let config = CallConfig()
config.appId = <#AppId#>
config.userId = <#UserId#>
config.rtcEngine = rtcEngine
config.signalClient = signalClient

callApi.initialize(config: config)

Add and listen for CallAPI callbacks.

callApi.addListener(listener: self)

extension ViewController: CallApiListenerProtocol {
    func onCallStateChanged(with state: CallStateType,
                            stateReason: CallStateReason,
                            eventReason: String,
                            eventInfo: [String : Any]) {
        // ...
    }
}

Handle CallRtmManager login

rtmManager?.login(rtmToken: rtmToken, completion: { err in
    if let _ = err { return }
    // Login successful, you can start preparing the call environment.
})

prepare call environment

// Prepare the call environment
let prepareConfig = PrepareConfig()
prepareConfig.rtcToken = <#Universal RTC Token#>
prepareConfig.roomId = <#Channel ID to call#>
prepareConfig.localView = callVC.localCanvasView.canvasView
prepareConfig.remoteView = callVC.remoteCanvasView.canvasView
// If you want to send extension information to the other party, you can achieve this through this parameter
prepareConfig.userExtension = nil

callApi.prepareForCall(prepareConfig: prepareConfig) { err in
    // Success means you can start making the call
}

Caller makes a call

  • Video call
    private func _call(remoteUserId: UInt) {
    // Check if the call can be made; the CallAPI state should be "prepared"
    if callState == .idle || callState == .failed {
        // The call environment is not prepared or has encountered an error; need to reprepare the call environment

        // Error message

        return
    }

    callApi.call(remoteUserId: remoteUserId) { [weak self] err in
        guard let err = err, self?.callState == .calling else { return }
        // Call failed, cancel the call and return to idle state
        self?.callApi.cancelCall(completion: { err in
        })
    }
}
  • Audio call
    private func _call(remoteUserId: UInt) {
    // Need to check if the call can be made; if the CallAPI is complete, the state will be "prepared"
    if callState == .idle || callState == .failed {
        // The call environment is not prepared or has encountered an error; need to reprepare the call environment

        // Error message

        return
    }

    callApi.call(remoteUserId: remoteUserId, callType: .audio, callExtension: [:]) { [weak self] err in
        guard let err = err, self?.callState == .calling else { return }
        // Call failed, cancel the call and return to idle state
        self?.callApi.cancelCall(completion: { err in
        })
    }
}

listens for call events and processes

func onCallStateChanged(with state: CallStateType,
                      stateReason: CallStateReason,
                      eventReason: String,
                      eventInfo: [String: Any]) {
    switch state {
    case .calling:
        let fromUserId = eventInfo[kFromUserId] as? UInt ?? 0
        let fromRoomId = eventInfo[kFromRoomId] as? String ?? ""
        let toUserId = eventInfo[kRemoteUserId] as? UInt ?? 0

        if currentUid == "\(toUserId)" {
            // The current user is the callee

            // Get user information for displaying in the popup
            let user = userList.first { \$0.userId == "\(fromUserId)" }
            let dialog = CalleeDialog.show(user: user)
            // Accept the call
            dialog?.acceptClosure = { [weak self] in
                guard let self = self else { return }
                self.callApi.accept(remoteUserId: fromUserId) { [weak self] err in
                    guard let err = err else { return }
                    // If there is an error accepting the call, reject it and return to the initial state
                    self?.api.reject(remoteUserId: fromUserId, reason: err.localizedDescription, completion: { err in
                    })
                }
            }
            // Reject the call
            dialog?.rejectClosure = { [weak self] in
                self?.callApi.reject(remoteUserId: fromUserId, reason: "reject by user") { err in
                }
            }
        } else if currentUid == "\(fromUserId)" {
            // The current user is the caller

            // Get user information for displaying in the popup
            let user = userList.first { \$0.userId == "\(toUserId)" }
            let dialog = CallerDialog.show(user: user)
            // Cancel the call
            dialog?.cancelClosure = { [weak self] in
                self?.callApi.cancelCall(completion: { err in
                })
            }
        }
    default:
        break
    }
}

Receives call success

func onCallStateChanged(with state: CallStateType,
                      stateReason: CallStateReason,
                      eventReason: String,
                      eventInfo: [String : Any]) {
    switch state {
    case .connected:

        // Display the call page.
        present(callVC, animated: false)
        break
    default:
        break
    }
}

Ends call

func _hangupAction() {
    callApi?.hangup(remoteUserId: UInt(targetUser?.userId ?? "") ?? 0, reason: nil, completion: { err in
    })
...

Receives hang-up message

func onCallStateChanged(with state: CallStateType,
                      stateReason: CallStateReason,
                      eventReason: String,
                      eventInfo: [String: Any]) {
    let currentUid = userInfo?.userId ?? ""

    switch state {
    case .prepared:
        switch stateReason {
        case .localHangup, .remoteHangup:
            // Remove the call page
            callVC.dismiss(animated: false)
            // Display rejection information

        default:
            break
        }
    default:
        break
    }
}

Updates channel id

// Prepare the call environment
let prepareConfig = PrepareConfig()
// Set the new channel ID
prepareConfig.roomId = <#Channel ID to call#>
// Other property settings are omitted here. Please ensure to synchronize the settings for other properties.

callApi.prepareForCall(prepareConfig: prepareConfig) { err in
    // Success means you can start making the call
}

Leaves and releases resources

// Clear CallAPI cache
callApi.deinitialize {
    // Destroy RTC instance
    AgoraRtcEngineKit.destroy()

    // Logout from RTM service
    self.rtmManager.logout()

    // Other business logic
}

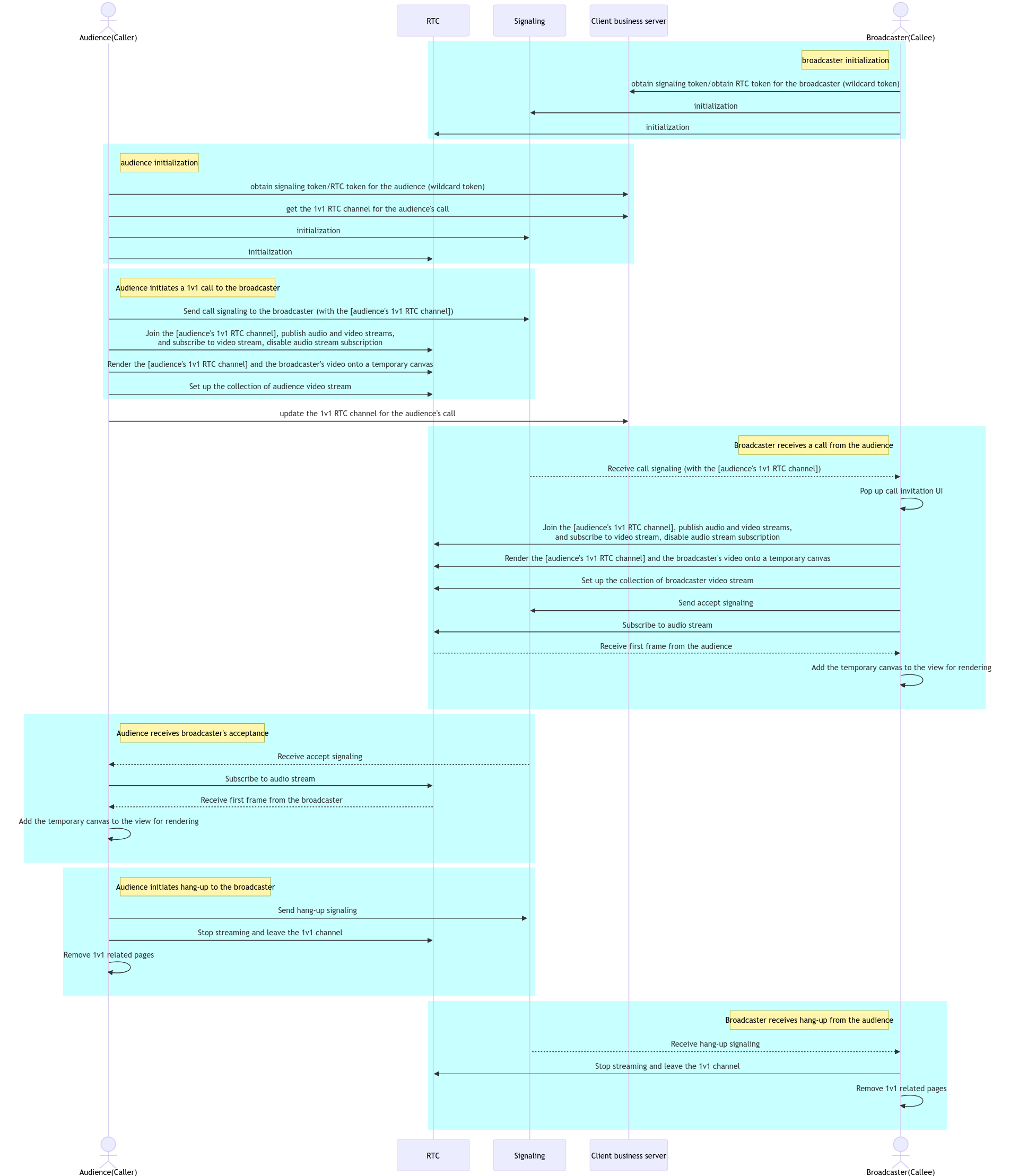

Sequence diagram for calling CallAPI scenarios:

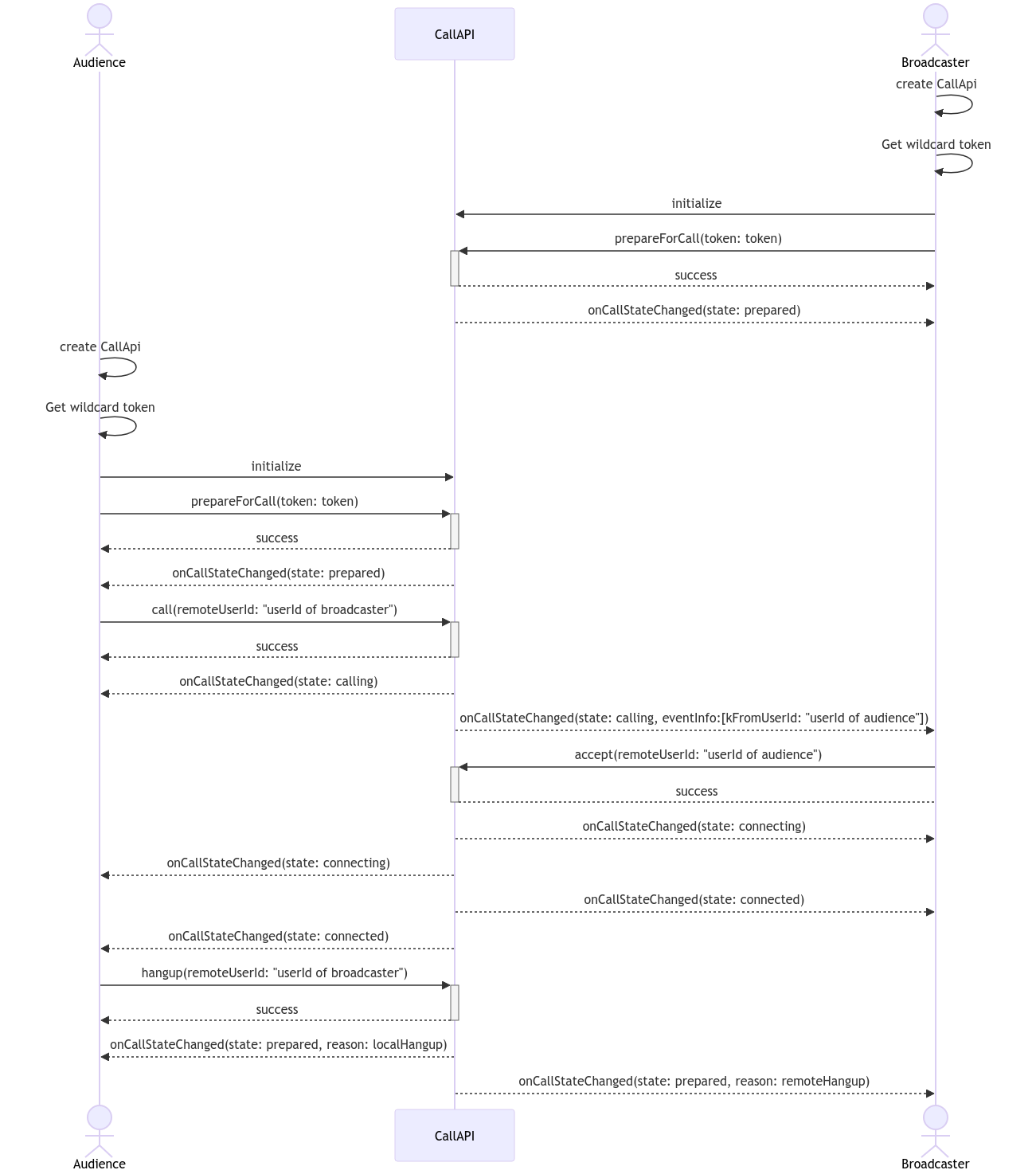

  • 1v1 scenario

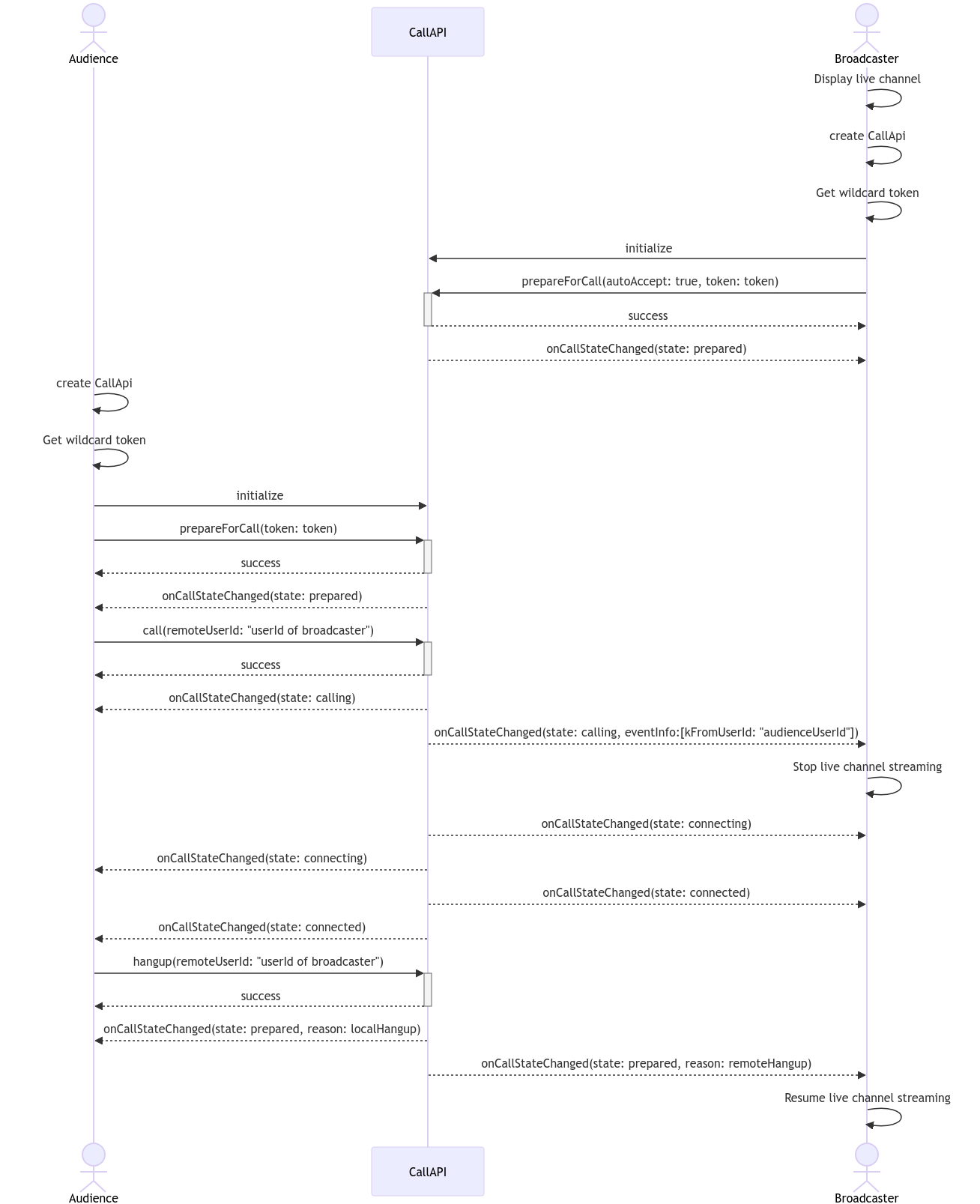

  • Show to 1v1



5. Advanced Integration

5.1 Using an Initialized rtmClient

Agora's CallAPI for 1v1 private rooms has already implemented the necessary encapsulation for RTM services. If your project already has an RTM instance (rtmClient) before integrating the 1v1 private room, you can directly use the initialized RTM instance and then call the relevant functionalities.

If you use your own created rtmClient instance, you can manage the RTM login state yourself; you can also manage login and logout using the login and logout methods provided in our CallRtmManager.

let rtmClient: AgoraRtmClientKit? = _createRtmClient()
rtmClient?.login(token) {[weak self] resp, error in
    if let error = error {return}

  // Once logged in, you can initialize CallRtmManager, CallRtmSignalClient, and CallApi
}

5.2 Switching the Timing of Publishing and Subscribing for the Callee to Save Costs

  • There are two timing options for the callee's publishing and subscribing after receiving a call:
    • Automatically publish audio and video streams and subscribe to the video stream upon receiving the call, which is the default behavior.
    • Publish audio and video streams and subscribe to the video stream only after the callee accepts the call.
  • You can set the timing for publishing and subscribing through the optional callback canJoinRtcOnCalling in the CallApiListenerProtocol:
    • If it returns true or the callback method is not implemented, the default streaming strategy will be used, meaning audio and video streams will be published and subscribed to upon receiving the call.
    • If it returns false, the strategy will be to publish audio and video streams and subscribe to the video stream only after accepting the call.
/// Determine whether to join RTC when receiving a call
/// @param eventInfo: Extended information received when the call is received
/// @return
/// - true: Can join
/// - false: Cannot join
@objc optional func canJoinRtcOnCalling(eventInfo: [String: Any]) -> Bool

5.3 Manually Enable and Disable Audio and Video Stream Publishing

Since the CallAPI internally starts audio and video capture during a call and stops it when the call ends, if external manual activation of audio and video capture is needed after ending the call (for example, when onCallStateChanged returns (state: prepared)), you can enable the capture.

rtcEngine.enableLocalAudio(true)
rtcEngine.enableLocalVideo(true)

5.4 Carry Custom Data Structure in the Message

By setting parameters in the userExtension attribute of the PrepareConfig, you can attach additional user extension information when sending messages to the other party (such as for call, cancel call, agree, reject, etc.). The other party can receive this userExtension through callback messages to obtain relevant additional information when processing the message.

public func onCallStateChanged(with state: CallStateType,
                               stateReason: CallStateReason,
                               eventReason: String,
                               eventInfo: [String : Any]) {
    let userExtension = eventInfo[kFromUserExtension] as? [String: Any]
    ...
}

5.5 Call Exception Diagnosis

During the connection process on both ends (when the state is calling/connecting/connected), you can obtain the call ID for the current call on both ends using the getCallId method.

You can also query the duration of various nodes for the current call through the internal log reporting of the CallAPI in the Agora backend. If you need to use this, you can contact [email protected] to apply for the Agora custom data reporting and analysis service.

5.6 Listen to RTC Call Channel Callbacks

To better understand the current state and events of the call channel, you can also listen to the RTC channel callbacks. Since the joinChannelEx method is used to join the RTC channel in the CallAPI, you cannot use the rtcEngine.addDelegate method. Instead, you need to use rtcEngine.addDelegateEx and specify the corresponding channel to add the delegate:

// You can save the call's channel ID when receiving the call state
func onCallStateChanged(with state: CallStateType,
                        stateReason: CallStateReason,
                        eventReason: String,
                        eventInfo: [String : Any]) {
    switch state {
    case .calling:
        roomId = eventInfo[kFromRoomId] as? String ?? ""
    default:
        break
    }
}

// Set up the listener using the channel ID after receiving the joinRTCStart event
@objc func onCallEventChanged(with event: CallEvent, eventReason: String?) {
    switch event {
    case .joinRTCStart:
        /// @param roomId Current RTC call channel ID
        /// @param currentUid Current user ID
        let connection = AgoraRtcConnection(channelId: roomId, localUid: Int(currentUid))
        rtcEngine.addDelegateEx(self, connection: connection)
    default:
        break
    }
}

The ID of the current RTC call channel (the roomId parameter) can be parsed from eventInfo when the state is calling in the onCallStateChanged method.

Note: You need to ensure that the joinRTCStart event has been triggered before joining; calling rtcEngine.addDelegateEx before this event will be ineffective.

5.6 Updating Expired Tokens

You can update the expired tokens for signaling and RTC in the following way.

Signaling Token

  1. Monitor whether the RTM token has expired. You can do this by adding and listening to the CallRtmManager state callback , specifically the onTokenPrivilegeWillExpire method of ICallRtmManagerListener``.
    extension Pure1v1RoomViewController: ICallRtmManagerListener {
   func onTokenPrivilegeWillExpire(channelName: String) {
       // The token is about to expire; a new token needs to be obtained.
   }
}
  2. Update Token。
    // Update RTC Token
self.api.renewToken(with: rtcToken)

// Update RTM Token
self.rtmManager?.renewToken(rtmToken: rtmToken)

// To ensure that both RTM and RTC Tokens are valid simultaneously, it is recommended to update both tokens at the same time.

RTC Token

  1. Monitor whether the RTC Token has expired.

    • Listen for expired tokens during a call.
    extension Pure1v1RoomViewController: CallApiListenerProtocol {
    func tokenPrivilegeWillExpire() {
    // The token is about to expire; need to retrieve the token again
    }
}
    • Monitor for expired tokens before starting a call.
    extension Pure1v1RoomViewController: CallApiListenerProtocol {
    @objc func onCallError(with errorEvent: CallErrorEvent,
                            errorType: CallErrorCodeType,
                            errorCode: Int,
                            message: String?) {
        if errorEvent == .rtcOccurError, errorType == .rtc, errorCode == AgoraErrorCode.tokenExpired.rawValue {
            // Failed to join the RTC channel; need to cancel the call and retrieve the Token again
            self.api.cancelCall { err in
            }
        }
    }
}

  2. Update Token.

    // Update RTC Token
self.api.renewToken(with: rtcToken)

// Update RTM Token
self.rtmManager?.renewToken(rtmToken: rtmToken)

// To ensure that both RTM and RTC Tokens are valid simultaneously, it is recommended to update both tokens at the same time.

6. API Reference

  • Refer to the link to review the API for CallAPI.
  • Refer to the link to review the API for SignalClient.

7. Implementation Principles

7.1 Optimizing Call Performance and Reliability

7.1.1 Accelerating Rendering Speed

    1. Use Wildcard Token
    • To improve call quality and stability, we use a wildcard token, which saves time spent obtaining tokens for joining different channels. This means that when using our service, you do not need to frequently obtain tokens; you only need to use a fixed token. This not only improves your efficiency but also allows you to focus more on the content of the call itself.

    • Note: To ensure the privacy and security of calls, it is recommended to use different RTC channel numbers for each call.

    1. Accelerate the caller's rendering speed
    • 2.1 [Optional] During initialization, you can join your RTC channel in advance. Please note that this behavior may incur additional costs. If you are concerned about costs, you may choose to skip this step.
    • 2.2 When initiating a call to the callee
      • 2.2.1 Join your RTC channel.
      • 2.2.2 Send audio and video streams to your RTC channel.
      • 2.2.3 Subscribe to the remote video stream, and do not subscribe to the audio stream.
      • 2.2.4 At the same time, to avoid missing the first I-frame decoding, which may cause slow rendering of the first frame, you need to create a temporary canvas and use the setupRemoteVideoEx method to render the callee's video stream on that canvas.
    • 2.3 After receiving the callee's acceptance message, start subscribing to the remote audio stream.
    • 2.4 When the first frame from the callee is received and the callee's agreement is confirmed, the connection can be considered successful. At this point, you can add the previously created temporary canvas to the view to complete the video rendering.
    1. Accelerate the callee's rendering speed
    • 3.1 [Optional][Recommended] After receiving the caller's call
      • 3.1.1 Immediately join the caller's RTC channel.
      • 3.1.2 Push audio and video streams to the caller's RTC channel.
      • 3.1.3 Then subscribe to the remote video stream, and do not subscribe to the audio stream.
      • 3.1.4 At the same time, to avoid missing the first I-frame decoding, which may cause slow rendering of the first frame, you need to create a temporary canvas and use the setupRemoteVideoEx method to render the caller's video stream on that canvas. Please note that [Step 3.1] may incur additional costs. If you are sensitive to costs, you may choose to skip this step.
    • 3.2 After clicking accept
      • 3.2.1 If [Step 3.1] was not executed when receiving the call, then you need to execute [Step 3.1] here.
      • 3.2.2 Start subscribing to the remote audio stream.
    • 3.3 After receiving the first frame from the caller, the connection can be confirmed as successful. At this point, you can add the previously created temporary canvas to the visual view, thus completing the video rendering process.
    1. Sequence Diagram



7.1.2 Improve Message Delivery Rate

  • Add message acknowledgment (ignore if signaling channel is available)
  • Add timeout retries (ignore if signaling channel is available)
  • Select signaling channels with higher delivery rates, such as Agora RTM

7.2 Metrics Affecting Call Speed

  • Caller
    • Time taken from call initiation to the callee receiving the call
    • Time taken from call initiation to receiving the callee's acceptance
    • Time taken from call initiation to the callee joining the channel
    • Time taken from call initiation to the caller joining the channel
    • Time taken from call initiation to receiving the first frame from the callee
  • Callee
    • Time taken from receiving the call to accepting the call
    • Time taken from receiving the call to the callee joining the channel
    • Time taken from receiving the call to the caller joining the channel
    • Time taken from receiving the call to receiving the first frame from the caller
